10000PSI ultra high pressure resin hose -Letone

LT795

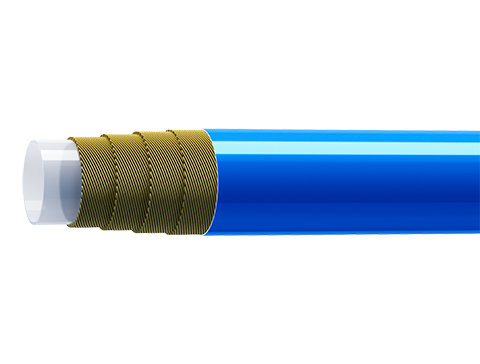

10000PSI ultra high pressure resin hose

Scope of application ：suitable for conveying media such as water and hydraulic oil under high pressure, widely used in high-pressure cleaning and other industries

Pressure range： 690bar(10000psi)

Inner rubber layer： Nylon

Reinforcement layer： four layers of steel wire winding

Outer layer：black or colored polyurethane

Online

Hotline ：

+86037155157686

Parameter

Hose inner diameter I.D.			Outer diameter of hose O.D.	Working pressure W.P.		Burst pressure W.P.		Minimum bending radius MIN.B.P.	Reference weight W.T.
Dash	In.	mm	mm	MPa	psi	MPa	psi	mm	g/m
-4	1/4	6.3	12.5	69	10000	207	30000	110	255
-5	5/16	7.9	14.5	69	10000	207	30000	130	310
-6	3/8	9.5	17.2	69	10000	207	30000	150	375
-8	1/2	12.7	20.8	69	10000	207	30000	200	570

LT795

10000PSI ultra high pressure resin hose

Pressure range： 690bar(10000psi)
Inner rubber layer： Nylon
Reinforcement layer： four layers of steel wire winding
Outer layer：black or colored polyurethane

Inquiry

LT796

14500PSI ultra high pressure resin hose

Pressure range：1000bar (14500psi)
Inner rubber layer：Nylon
Reinforcement layer：four layers of high-strength super-flexible steel wire wound
Outer layer：black or colored polyurethane
Temperature range：-40℃ to +100℃ (-40℉ to +212℉)

Inquiry

LT797

21750PSI ultra high pressure resin hose

Pressure range：1500bar (21750psi)
Inner rubber layer： Nylon
Reinforcement layer：four or six layers of high-strength super-flexible steel wire winding
Outer layer：black or colored polyurethane
Temperature range：-40℃ to +100℃ (-40℉ to +212℉)

Inquiry

LT798

29000PSI ultra high pressure resin hose

Pressure range：2000bar (29000psi)
Inner rubber layer： Nylon
Reinforcement layer：four or six layers of high-strength super-flexible steel wire winding
Outer layer：black or colored polyurethane
Temperature range： -40℃ to +100℃ (-40℉ to +212℉)

Inquiry
