14500PSI ultra high pressure resin hose -Letone

LT796

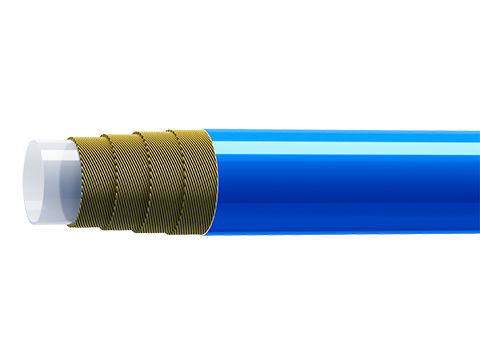

14500PSI ultra high pressure resin hose

Scope of application ： suitable for conveying media such as water and hydraulic oil under high pressure, widely used in high-pressure cleaning and other industries

Pressure range：1000bar (14500psi)

Inner rubber layer：Nylon

Reinforcement layer：four layers of high-strength super-flexible steel wire wound

Outer layer：black or colored polyurethane

Temperature range：-40℃ to +100℃ (-40℉ to +212℉)

Online

Hotline ：

+86037155157686

Parameter

Hose inner diameter I.D.			Outer diameter of hose O.D.	Working pressure W.P.		Burst pressure W.P.		Minimum bending radius MIN.B.P.	Reference weight W.T.
Dash	In.	mm	mm	MPa	psi	MPa	psi	mm	g/m
-4	1/4	6.3	13.5	100	14500	300	43500	110	310
-5	5/16	7.9	15	100	14500	300	43500	130	350
-6	3/8	9.5	18.5	100	14500	300	43500	160	500
-8	1/2	12.7	22	100	14500	300	43500	200	640

LT795

10000PSI ultra high pressure resin hose

Pressure range： 690bar(10000psi)
Inner rubber layer： Nylon
Reinforcement layer： four layers of steel wire winding
Outer layer：black or colored polyurethane

Inquiry

LT796

14500PSI ultra high pressure resin hose

Pressure range：1000bar (14500psi)
Inner rubber layer：Nylon
Reinforcement layer：four layers of high-strength super-flexible steel wire wound
Outer layer：black or colored polyurethane
Temperature range：-40℃ to +100℃ (-40℉ to +212℉)

Inquiry

LT797

21750PSI ultra high pressure resin hose

Pressure range：1500bar (21750psi)
Inner rubber layer： Nylon
Reinforcement layer：four or six layers of high-strength super-flexible steel wire winding
Outer layer：black or colored polyurethane
Temperature range：-40℃ to +100℃ (-40℉ to +212℉)

Inquiry

LT798

29000PSI ultra high pressure resin hose

Pressure range：2000bar (29000psi)
Inner rubber layer： Nylon
Reinforcement layer：four or six layers of high-strength super-flexible steel wire winding
Outer layer：black or colored polyurethane
Temperature range： -40℃ to +100℃ (-40℉ to +212℉)

Inquiry
