THERMOPLASTIC HOSE
Complying with SAE J517 100R7 and 100R8 standards, Letone thermoplastic hoses are suitable to transfer petroleum and water based hydraulic oil, which could be used as lubrication lines and blowout preventer lines, etc., widely apply to hydraulic lifts, agricultural machines and construction machines.
The ultra-high pressure thermoplastic series is designed for transfering water, oil and other medium under high pressure, widely apply to high pressure cleaning industry
-

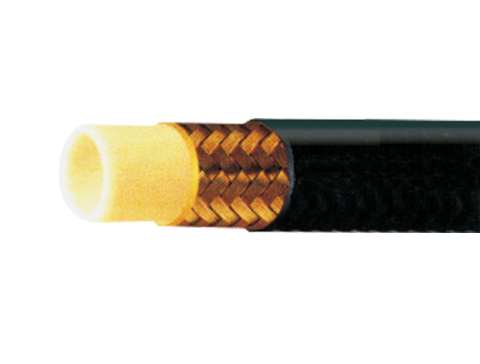

LT790Fiber braided high-pressure resin hose
Inner Tube：nylon
Reinforcement：One or two layers of synthetic fiber braid
Outer Layer：Oil-resistant, aging-resistant, weather-resistant black polyurethane
Temperature Range：-40℃ ~ +100℃（-40℉ ~ +212℉） -

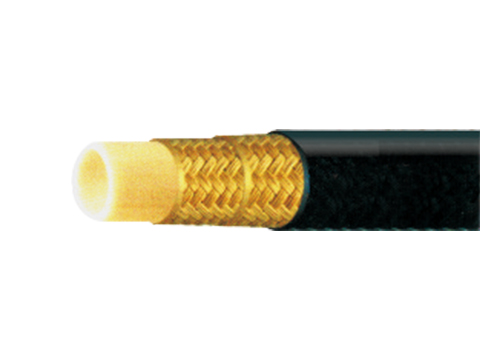

LT791Steel wire braided high-pressure resin hose
Inner Tube：nylon
Reinforcement：One or two layers of steel wire braid
Outer Layer：Oil-resistant, aging-resistant, weather-resistant black polyurethane
Temperature Range：-40℃ ~ +100℃（-40℉ ~ +212℉） -

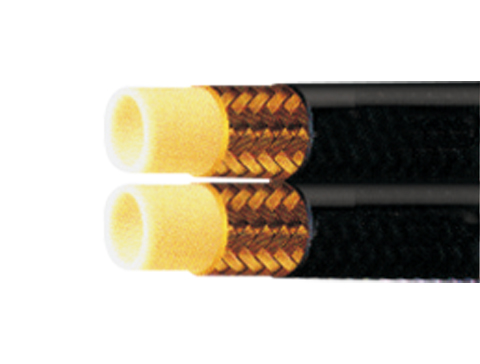

LT792Fiber braided double resin hose
Inner Tube：nylon
Reinforcement：One or two layers of synthetic fiber braid
Outer Layer：Oil-resistant, aging-resistant, weather-resistant black polyurethane
Temperature Range：-40℃ ~ +100℃（-40℉ ~ +212℉） -

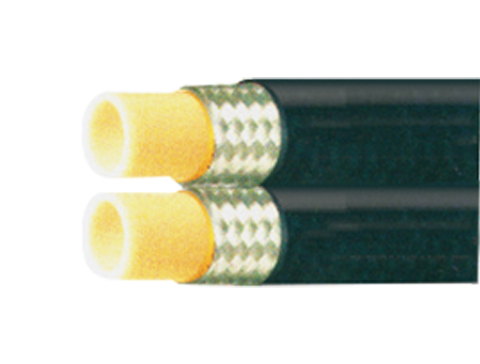

LT793Steel wire braided double resin hose
Inner Tube：nylon
Reinforcement：One or two layers of steel wire braid
Outer Layer：Oil-resistant, aging-resistant, weather-resistant black polyurethane
Temperature Range：-40℃ ~ +100℃（-40℉ ~ +212℉） -
LT794Aramid fiber braided high-pressure resin hose
Inner Tube：nylon
Reinforcement：One or two layers of aramid fiber weave
Outer Layer：Oil-resistant, aging-resistant, weather-resistant black polyurethane
Temperature Range：-40℃ ~ +100℃（-40℉ ~ +212℉） -

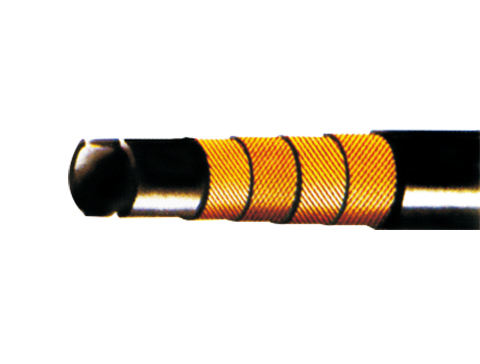

LT79569MPa ultra high pressure resin hose
Inner Tube：nylon
Reinforcement：Four layers of high-strength ultra-flexible steel wire winding
Outer Layer：Oil-resistant, aging-resistant, weather-resistant black polyurethane
Temperature Range：-40℃ ~ +100℃（-40℉ ~ +212℉） -

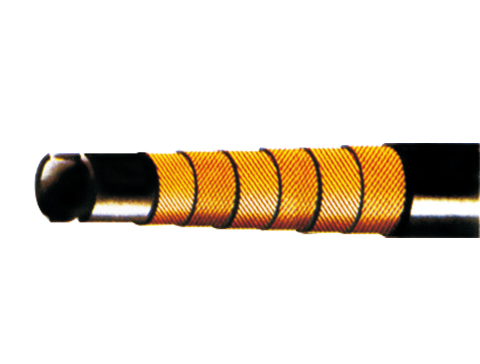

LT796100MPa ultra high pressure resin hose
Inner Tube：nylon
Reinforcement：Four layers of high-strength ultra-flexible steel wire winding
Outer Layer：Oil-resistant, aging-resistant, weather-resistant black polyurethane
Temperature Range：-40℃ ~ +100℃（-40℉ ~ +212℉） -
LT797150MPa ultra high pressure resin hose
Inner Tube：nylon
Reinforcement：Four-layer or six-layer high-strength ultra-flexible steel wire winding
Outer Layer：Oil-resistant, aging-resistant, weather-resistant black polyurethane
Temperature Range：-40℃ ~+100℃（-40℉ ~ +212℉） -
LT799200MPa ultra high pressure resin hose
Inner Tube：nylon
Reinforcement：Four-layer or six-layer high-strength ultra-flexible steel wire winding
Outer Layer：Oil-resistant, aging-resistant, weather-resistant black polyurethane
Temperature Range：-40℃ ~ +100℃（-40℉ ~ +212℉） -
LT798200MPa ultra high pressure resin hose
Inner Tube：nylon
Reinforcement：Four-layer or six-layer high-strength ultra-flexible steel wire winding
Outer Layer：Oil-resistant, aging-resistant, weather-resistant black polyurethane
Temperature Range：-40℃ ~ +100℃（-40℉ ~ +212℉）
