STEEL WIRE BRAID HYDRAULIC HOSE
Lighter and more flexible with longer service life, Letone steel wire braid hydraulic hose has fully meets the needs of high-end hose users like heavy machinery and equipment manufactures.Letone hydraulic hose is guaranteed for use in the construcion, mining, agriculture, oil & gas and other industries with high performance.
-
LT SA6992Super Artery EXCEEDS ISO18752-AC/BC/CC
Inner rubber layer：Nitrile or neoprene synthetic rubber, suitable for biodegradable hydraulic oil
Reinforcement layer：one or two layers of steel wire weaving (1/4" ‒3/8"), pulse ≥300,000 times four layers of steel wire winding (1/2"‒2"), pulse ≥1 million times
Outer layer：non -stripping, wear-resistant, weather-resistant synthetic rubber
Temperature range：-40℃ to +100℃ (-40℉ to +212℉) -40℃ to +121℃ (-40℉ to +250℉) -
LT SA6991Super Artery EXCEEDS ISO18752-BC/CC
Inner rubber layer：Nitrile or neoprene synthetic rubber, suitable for biodegradable hydraulic oil
Reinforcement layer：one or two layers of steel wire weaving (1/2" ‒3/4"), pulse ≥ 300,000 times, four layers of steel wire winding (1" ‒ 2"), pulse ≥ 1 million times
Outer layer：non -stripping, wear-resistant, weather-resistant synthetic rubber
Temperature range：-40℃ to +100℃ (-40℉ to +212℉) -40℃ to +121℃ (-40℉ to +250℉) -
LTBP681-CWCar wash hose
Inner Layer：Synthetic rubber
Reinforcement：One or two layers of steel wire braiding
Outer Layer：Wear resistant synthetic rubber or super wear resistant UPE
Temperaturn Range：- 40 ℃ ~ + 100 ℃ (- 40 ℉ ~ + 212 ℉) -
LT699Artery Wire Braid Hydraulic Rubber Hose
Tube：synthetic rubber, suitable for biodegradable hydraulic oil
Reinforcement：one or two braided ultra high-strength steel, to enhance the burst pressure of more than 15%. One layer braiding pulse is not less than 300,000 times, two layer braiding pulse is not less than 500,000 times
Cover：peel-free, wear-resistant, weather-resistant (more than three years) synthetic rubber
Temperature Range：-40℃~+100℃（-40℉ ~ +212℉） -

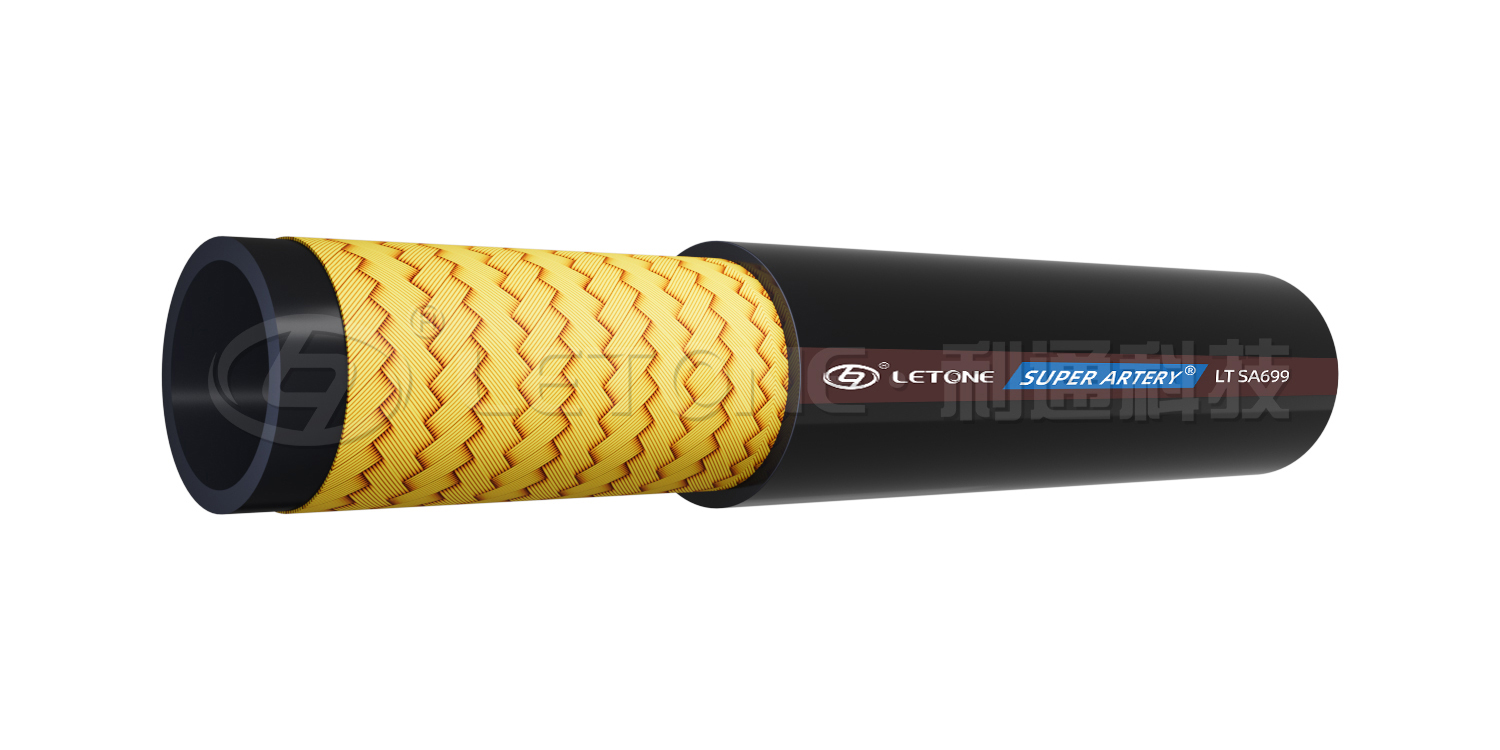

LTSA699Super Artery wire braided hose
Tube：CR/NBR synthetic rubber
Reinforcement：braided high tensile super fexible steel wire, one braid impulse reaches 300,000 cycles, two braids reaches 600,000 cycles
OuterLayer：Black glossy anti-aging and non-peeling synthetic rubber layer
Low bending radius：30% lower than SAE/DIN standards -
LT692Ultra-High Temperature and Heat Resistant Oil Wire Braided Hydraulic Hose
Tube：special compound rubber with good ultra-high temperature resistance and good oil resistance
Reinforcement：steel wire braid
Cover：high-temperature resistant and has excellent weather resistance good special rubber compound
Temperature range： -40 ℃ ~ + 208 ℃ -
LT691Ultra-Low Temperature Steel Wire Braided Hydraulic Rubber Hose
Tube：Ultra-low-temperature resistance especially good, has good oil resistance special rubber compound
Reinforcement：steel wire braid
Cover：special compound rubber with good weather resistance
Temperature range： -55 ℃ ~ + 100 ℃ -

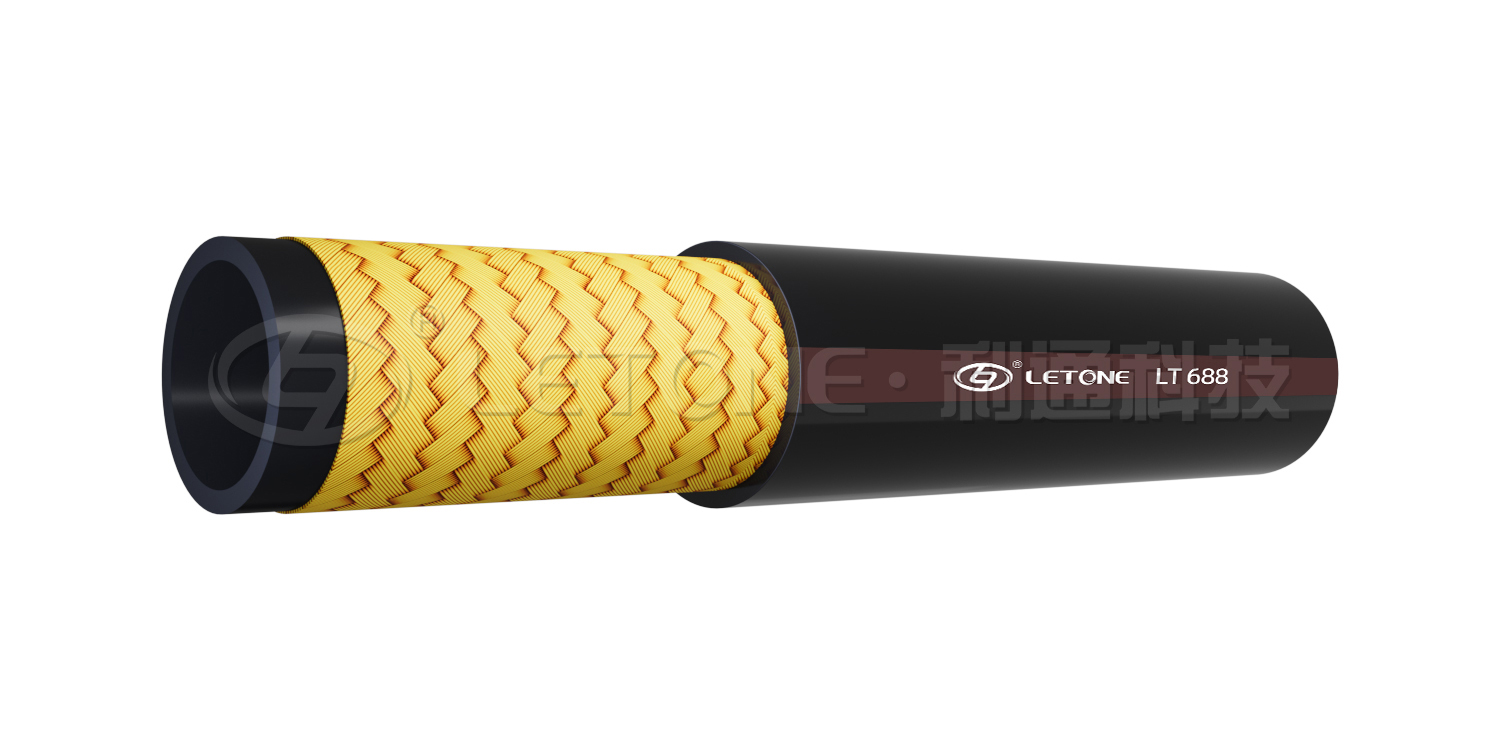

LT688SAE 100R17 Compact 1 and 2 steel Wire Reinforced Rubber Hoses
Tube：black oil-resistant synthetic rubber
Reinforcement：one or two layers of super flexible high-strength steel wire
Cover：black oil-resistant, weather-resistant, wear-resistant synthetic rubber
Temperature range：-40 ° C ~ + 100 ° C (-40 ° F ~ + 212 ° F) -

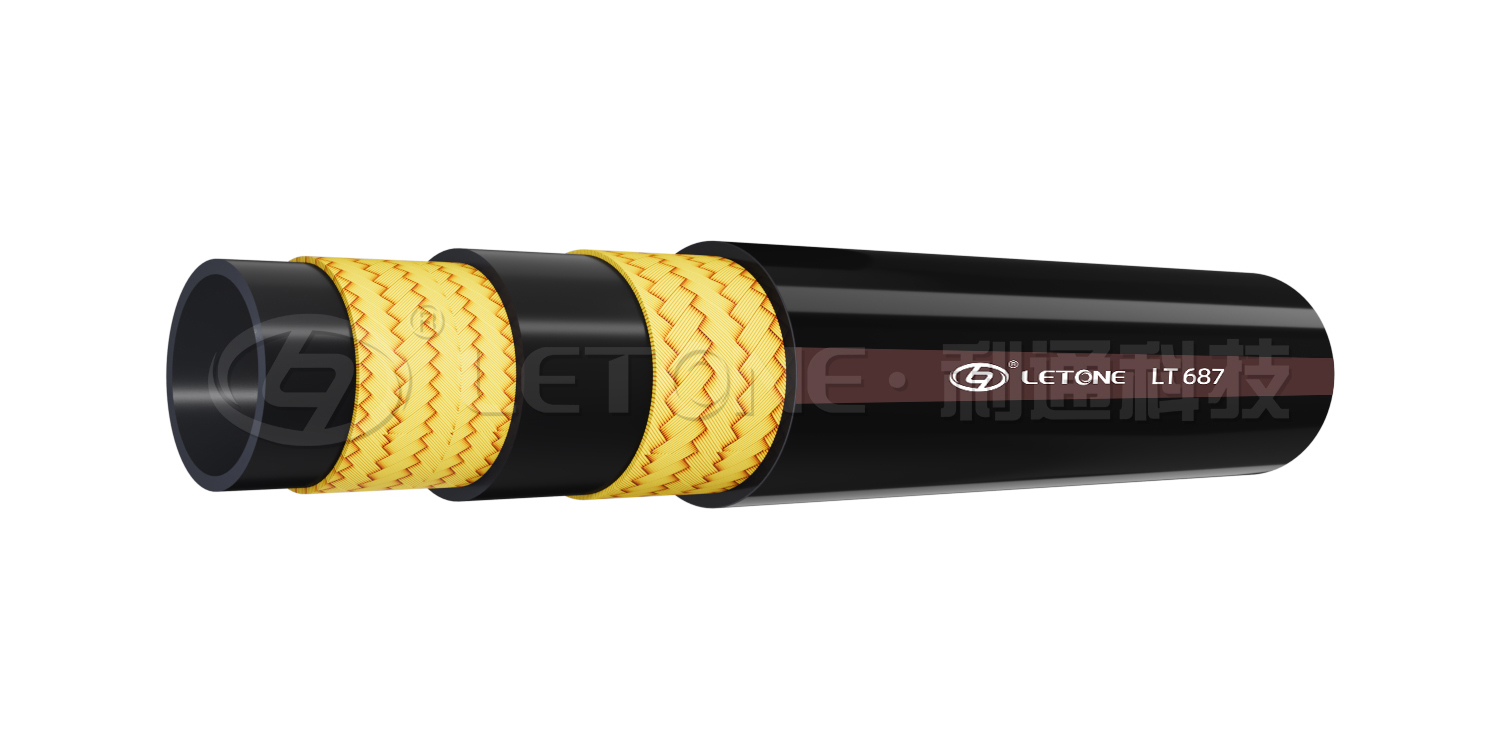

LT687SAE 100R16 Compact High Pressure 1 and 2 Steel Wire Braided Reinforced Rubber Hoses
Tube：black oil-resistant synthetic rubber
Reinforcement：one or two layers of super flexible high-strength steel wire
Cover：black oil-resistant, weather-resistant, wear-resistant synthetic rubber
Temperature range：-40 ° C ~ + 121 ° C (-40 ° F ~ + 250 ° F) -
LT686Large Diameter Steel Wire Braided Rubber Hose for Mine
Tube：black oil-resistant synthetic rubber
Reinforcement：one or two layers of super flexible high-strength steel wire
Cover：black oil-resistant, weather-resistant, wear-resistant synthetic rubber
Temperature range： -40 ° C ~ + 100 ° C (-40 ° F ~ + 212 ° F) -

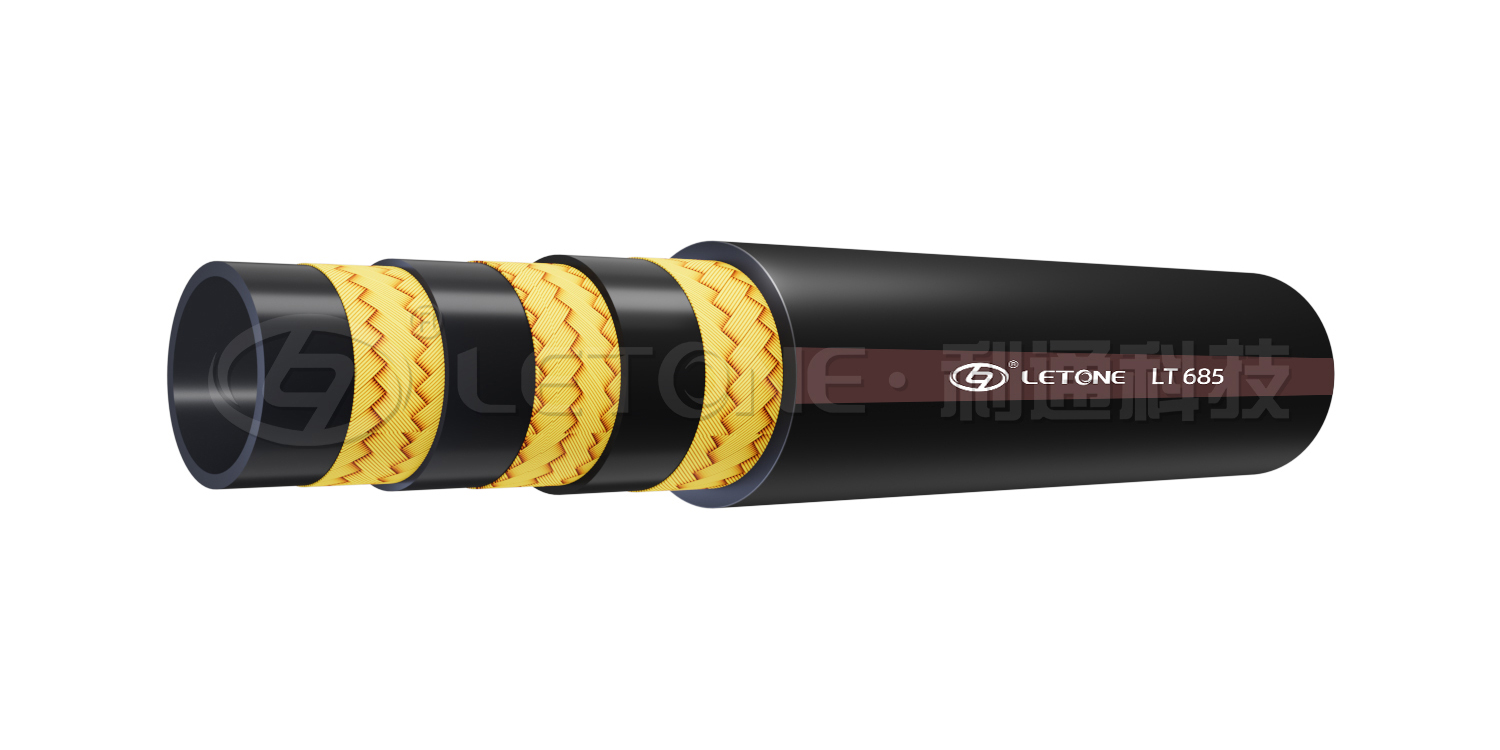

LT685MT98 Mine steel Wire Braided Rubber Hose
Tube：black oil-resistant synthetic rubber
Reinforcement：one or more layers of super flexible high-strength steel wire
Cover：black oil-resistant, weather-resistant, wear-resistant synthetic rubber
Temperature range：-40 ° C ~ + 100 ° C (-40 ° F ~ + 212 ° F) -
LT684Heat Resistant oil wire braided rubber hose
Tube：black heat-resistant oil synthetic rubber
Reinforcement：one or two layers of super flexible high-strength steel wire
Cover：black oil-resistant, weather-resistant, wear-resistant synthetic rubber
Temperature range： -40 ° C ~ + 135 ° C (-40 ° F ~ + 275 ° F) -
LT683EN857 SC Wire Braid Hydraulic Rubber Hose
Tube：black oil-resistant synthetic rubber
Reinforcement：one or two layers of super flexible high-strength steel wire
Cover：one or two layers of super-soft high-strength steel wire
Temperature：-40 ° C ~ + 100 ° C (-40 ° F ~ + 212 ° F) -
LT682SAE 100 RA/EN 853 ST Hydraulic Hose
Tube：black heat-resistant oil synthetic rubber
Reinforcement：one or two layers of super flexible high-strength steel wire
Cover：black oil-resistant, weather-resistant, wear-resistant synthetic rubber
Temperature range：-40 ° C ~ + 135 ° C (-40 ° F ~ + 275 ° F) -
LT681SAE 100RAT/EN853 SN Hydraulic Hose
Tube：black oil-resistant synthetic rubber
Reinforcement：one or two layers of super flexible high-strength steel wire
Cover：black oil-resistant, weather-resistant, wear-resistant synthetic rubber
Temperature range：-40 ° C ~ + 100 ° C (-40 ° F ~ + 212 ° F) -
LT689SAE 100R19 Compact 1 and 2 steel Wire Reinforced Rubber Hoses
Tube：black oil-resistant synthetic rubber
Reinforcement：one or two layers of super flexible high-strength steel wire
Cover：black oil-resistant, weather-resistant, wear-resistant synthetic rubber
Temperature range： -40 ° C ~ + 100 ° C (-40 ° F ~ + 212 ° F)
