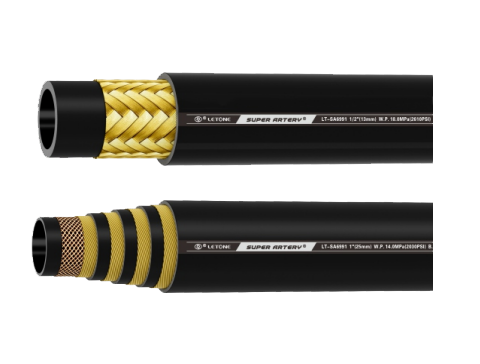

LT SA6991
Super Artery EXCEEDS ISO18752-BC/CC
Scope of application:suitable for large construction machinery such as excavators or demanding environments.

Inner rubber layer:Nitrile or neoprene synthetic rubber, suitable for biodegradable hydraulic oil
Reinforcement layer:one or two layers of steel wire weaving (1/2" ‒3/4"), pulse ≥ 300,000 times, four layers of steel wire winding (1" ‒ 2"), pulse ≥ 1 million times
Outer layer:non -stripping, wear-resistant, weather-resistant synthetic rubber
Temperature range:-40℃ to +100℃ (-40℉ to +212℉) -40℃ to +121℃ (-40℉ to +250℉)
Low bending:the bending radius is reduced by 41% compared to the ISO18752 standard; 47% lower than the SAE standard
High pressure:exceed the SAE standard by 60%
Super Artery EXCEEDS ISO18752-BC/CC
Parameter
model ISO18752 Inner diameter of hose (mm) Outer diameter of hose (mm) Working pressure (MPa) Minimum burst pressure (MPa) Minimum bending radius (mm) Weight (kg/m) Connector series
6991standard tube 6991AR wear-resistant tube AR 6991 super wear-resistant tube SAR
SA6991-1/2"-1 AC AC AC 13.0 20.7 18 72 80 0.419 31series
SA6991-5/8"-1 AC AC AC 16.0 24.0 15 60 105 0.515 31series
SA6991-3/4"-1 AC AC AC 19.0 28.0 14 56 120 0.661 31series
SA6991-1"-4 CC CC CC 25.0 33.5 14 56 150 0.998 31series
SA6991-1 1/4"-4 CC CC CC 32.0 43.0 14 56 190 1.395 31series
SA6991-1 1/2"-4 CC CC CC 38.0 48.0 9 36 240 1.577 31series
SA6991-2"-4 CC CC CC 51.0 62.5 8 32 500 2.341 31series
