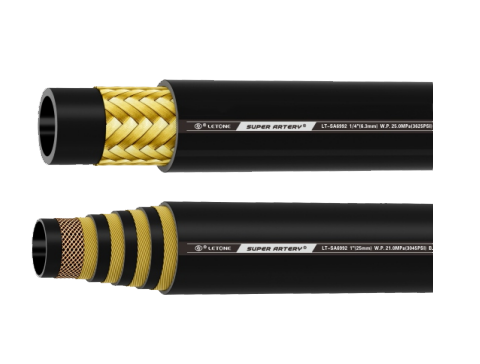

LT SA6992
Super Artery EXCEEDS ISO18752-AC/BC/CC
Product application:suitable for large construction machinery such as excavators or demanding environments.

Inner rubber layer:Nitrile or neoprene synthetic rubber, suitable for biodegradable hydraulic oil
Reinforcement layer:one or two layers of steel wire weaving (1/4" ‒3/8"), pulse ≥300,000 times four layers of steel wire winding (1/2"‒2"), pulse ≥1 million times
Outer layer:non -stripping, wear-resistant, weather-resistant synthetic rubber
Temperature range:-40℃ to +100℃ (-40℉ to +212℉) -40℃ to +121℃ (-40℉ to +250℉)
Low bending:the bending radius is reduced by 30% compared with the ISO18752 standard; it is reduced by 38% compared with the SAE standard
High pressure:36% exceeding SAE standard
Super Artery EXCEEDS  ISO18752-AC/BC/CC
Parameter
model ISO18752 Inner diameter of hose (mm) Outer diameter of hose (mm) Working pressure (MPa) Minimum burst pressure (MPa) Minimum bending radius (mm) Weight (kg/m) Connector series
6992standard tube 6992 wear-resistant tube AARR 6992 super wear-resistant tube
SA6992-1/4"-1 AC AC AC 6.3 13.4 25 100 40 0.219 31series
SA6992-5/16"-1 AC AC AC 8.0 15.2 25 100 55 0.277 31series
SA6992-3/8"-1 AC AC AC 10.0 17.4 21 84 65 0.33 31series
SA6992-1/2"-4 AC AC AC 13.0 22.2 25 100 110 0.658 31series
SA6992-5/8"-4 AC AC AC 16.0 24.0 25 100 130 0.771 31series
SA6992-3/4"-4 BC CC CC 19.0 28.2 25 100 160 0.939 31series
SA6992-1"-4 BC CC CC 25.0 35.3 21 84 210 1.247 31series
SA6992-1 1/4"-4 CC CC CC 32.0 44.0 21 84 250 1.874 31series
SA6992-1 1/2"-4 CC CC CC 38.0 49.5 18 72 300 2.127 31series
SA6992-2"-4 CC CC CC 51.0 63.0 18 72 610 2.848 31series
