STEEL WIRE SPIRAL HYDRAULIC HOSE
High pressure and pulse resistance and long service life, Letone steel wire spiral hydraulic hose fully meets the needs of high-end hose users such as heavy machinery and equipment manufacturers. Letone hydraulic hose is guaranteed for use in the construcion, mining, agriculture, oil & gas and other industries with high performance.
-

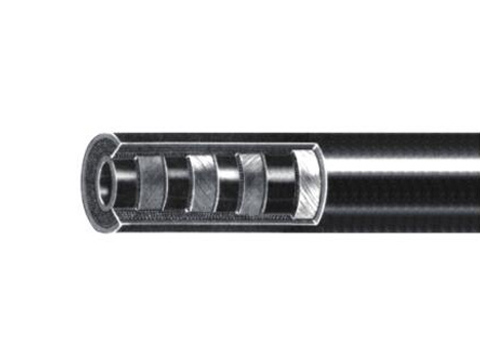

LT SA5993Super Artery EXCEEDS ISO18752 DC
Inner rubber layer：Neoprene synthetic rubber, suitable for hydraulic oil that can be degraded
Reinforcement：Four layers of steel wire winding (1/4"‒1"), pulse ≥1 million, six layers of steel wire winding (1 1/4"‒2"), pulse ≥1 million times
Outer layer：non-stripping, wear-resistant, weather-resistant synthetic rubber
Temperature range：-40°C to +121°C (-40°F to +250°F) -

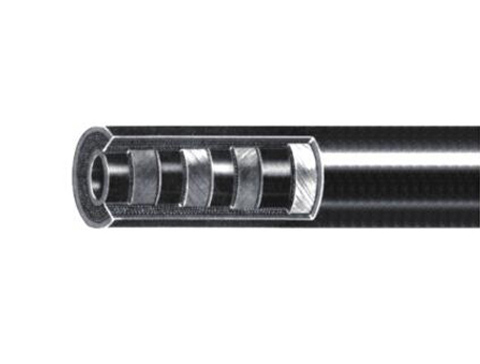

LT SA5992Super Artery EXCEEDS ISO18752-BC/CC/DC
Inner rubber layer：Neoprene synthetic rubber, suitable for hydraulic oil that can be degraded
Reinforcement layer：two layers of steel wire braiding (1/4" ‒5/16"), pulse ≥500,000 times, four layers of steel wire winding (3/8"‒1 1/4"), pulse ≥1 million times, six layers Wire winding (1 1/2"‒2"), pulse ≥ 1 million times
Outer layer：non-stripping, wear-resistant, weather-resistant synthetic rubber
Temperature range：-40℃ to +121℃ (-40℉ to +250℉) -

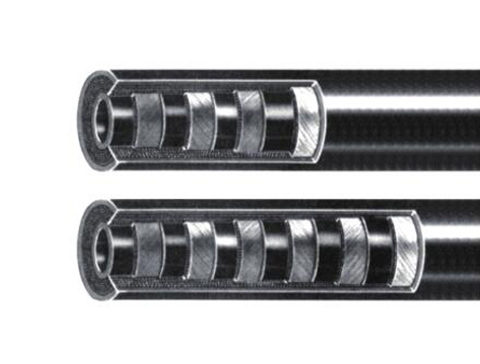

LT SA5991Super Artery EXCEEDS ISO18752-BC/CC
Inner rubber layer：Neoprene synthetic rubber, suitable for hydraulic oil that can be degraded
Reinforcement layer：super-strong high-flex steel wire wound in four layers, pulse ≥ 1 million times
Outer layer：non -stripping, wear-resistant, weather-resistant synthetic rubber
Temperature range：-40°C to +121°C (-40°F to +250°F) -

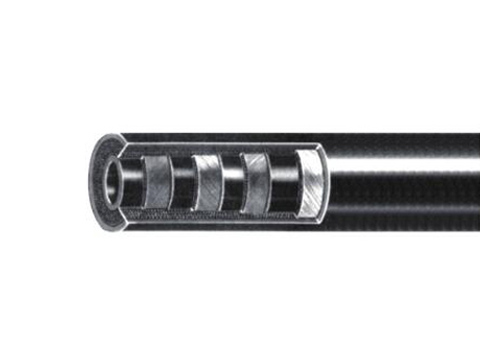

LTSA599-FHSuper Artery super soft hose
Inner Layer：Oil resistant synthetic rubber
Reinforcement：4-layered high-strength super-flexible steel wire
Outer Layer：Wear-resistant, weather-resistant synthetic rubber (weather-resistant for 5 years, warranty for 3 years)
Characteristic：Low bending-bending radius is 50% lower than DIN EN853 standard; high-pressure-pressure is 30%~40% higher than DIN EN853 standard; long life. -

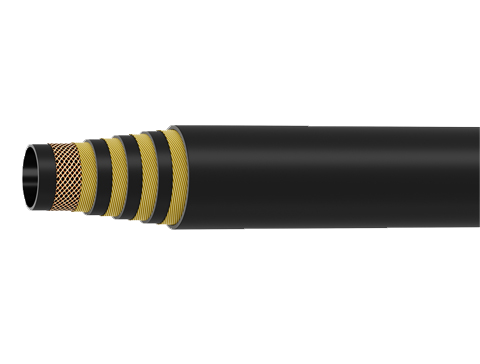

LT599Artery series steel wire wound hydraulic rubber hose
Tube：Inner tube of NBR tube
Reinforcement：4 layers or 6 layers of interlaced high-strength steel wire
Cover： Narrow cloth black non-stripping outer rubber
Standard：ISO18752-CC standard -

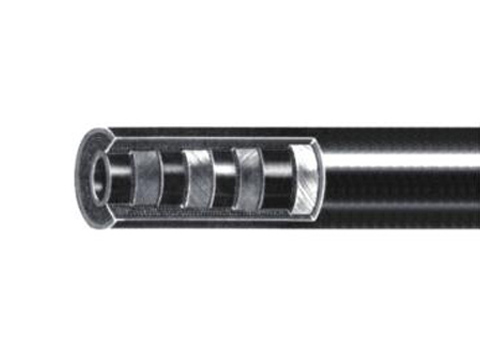

LT586SAE 100R9 Wire Spiral Hydraulic Rubber Hose
Yube： An inner tube of oil resistant synthetic rubber
Reinforcement：4 plies of steel wire Wrapped in alternating directions
Cover： Weather resistant synthetic rubber cover
TEMPERATURE RANGE：-40℃~+121℃（-40°F~+250°F） -

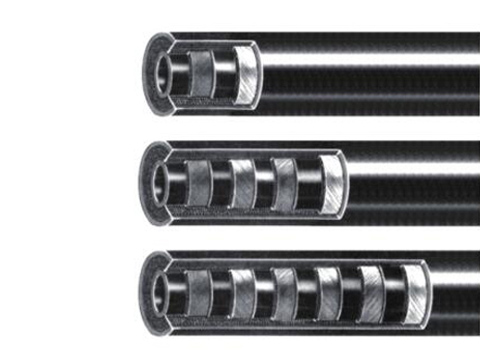

LTSA599Super Artery Steel Wire Spiral Hydraulic Hose
Tube：CR/NBR synthetic rubber
Reinforcement：Multispiral high tensile super flexible steel wire, four plies≥ 1 million impulse cycles
Cover：Skiving-free black narrow cloth texture hose cover made of anti-aging synthetic rubber
Temperature Range：-40℃~+121℃(-40℉~+250℉) -
LT593Super High Pressure Resistant Wire Spiral Hydraulic Rubber Hose
Tube： oil-resistant black synthetic rubber
Reinforcement：six - layer high strength steel wire , inner diameter 25
Cover： Black synthetic rubber, oil resistance, wear resistance, weather resistance
Temperature:：-40℃～+121℃ ( -40℉～+250℉) -
LT591Super Low Temperature Resistant Wire Spiral Hydraulic Rubber Hose
Tube ：The hose is composed of special composite rubber inner glue with excellent resistance to
Reinforcement：ultra-low temperature and good oil resistance, steel wire braid strengthening layer
Cover：special composite rubber outer rubber with excellent resistance to ultra-low temperature and good resistance to weather
Temperature range：55 ℃ ~ 100 ℃ -
LT590Large Size Wire Spiral Hydraulic Rubber Hose
Tube：hoses are made of special composite rubber internals with good super high temperature resistance
Reinforcement：Multispiral high tensile super flexible steel wire
Cover：Anti-aging synthetic rubber
Temperature Range：-40℃~100℃（-40°F~+212°F） -
LT589SAE 100R15 Heavy Duty High Impulse Mutiple Spiral Steel Wire Reinforced Hydraulic Rubber Hose
Tube：the hose consists of a layer of heat-resistant synthetic rubber inner rubber layer
Reinforcement：ultra-high strength steel wire winding layer in alternate directions
Cover：a layer of weather resistant synthetic rubber outer rubber layer，Heavy high pulse multilayer steel wire reinforced rubber hose
Temperature range： -40℃~+121℃（-40°F~+250°F） -
LT588EN856-4SH 4 Wire Spiral Hydraulic Rubber Hose
Tube：The hose consists of a neoprene inner rubber layer
Reinforcement：4-layer high strength steel wire winding layer
Cover：oil and weather resistant synthetic rubber outer rubber layer
Temperature Range： -40℃~+100℃(-40°F~+212°F) -
LT585MT98 Wire Spiral Hydraulic Rubber Hose for Mining
Tube：made of special rubber with good oil and weather resistance
Reinforcement：reinforced with copper coated steel wire and black fabric appearance
Cover：anti-aging synthetic rubber
Temperature Range： -40℃~+100℃(-40°F~+212°F) -
LT583EN856-4SP 4 Wire Spiral Hydraulic Rubber Hose
Tube：black, oil resistant sythentic rubber
Reinforcement：4 layers of spiraled high tensile steel wire
Cover：weather resistant sythentic rubber
Temperature Range：-40℃~+100℃ (-40°F~+212°F) -
LT582SAE 100R13 Wire Spiral High Pressure Hydraulic Rubber Hose
Tube：wear-resistant rubber
Reinforcement：adopts 4-layer high-strength steel wire wrapped layer as the framework layer
Cover：wear-resistant rubberouter rubber layers
Standard：Hose execution SAE100R13 standard, GB/T10544-2013 standard -
LT581SAE 100R12 4 Wire Spiral High Pressure Hydraulic Rubber Hose
Tube ：The hose consists of a heat-resistant synthetic rubber inner layer
Reinforcement： Four-layer steel wire winding layer
Cover：Oil-resistant and weather resistant synthetic rubber The outer rubber layer is composed
Temperature range ：40 ℃ ~ + 121 ℃ (- 40 ° F ~ + 250 ° F)
