EPDM multifunctional hose -Letone

LT403

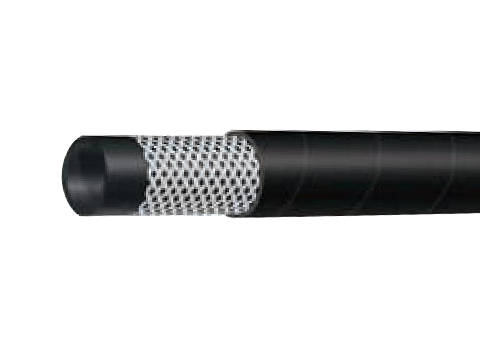

EPDM multifunctional hose

Application：suitable for conveying air, water, non-aggressive chemicals, food, etc

Inner layer：EPDM

Reinforcement layer：high strength textile rope

Outer layer：wear-resistant, weather-resistant EPDM

Temperature range：-40 ° C ~ + 100 ° C (-40 ° F ~ + 212 ° F)

Online

Hotline ：

+86037155157686

Parameter

I.D.			O.D.	W.P.		W.P.		W.T.
Dash	In.	mm	mm	MPa	psi	MPa	psi	g/m
-4	1/4	6	13	2	300	6	900	160
-5	5/16	8	15	2	300	6	900	200
-6	3/8	10	17	2	300	6	900	220
-8	1/2	13	21	2	300	6	900	340
-10	5/8	16	25	2	300	6	900	450
-12	3/4	19	29	2	300	6	900	570
-16	1	25	35	2	300	6	900	740
-20-	1 1/4	32	44	2	300	6	900	920
-24	11/2	38	52	2	300	6	900	1080
-32	2	51	66	2	300	6	900	1650

LT409

Stainless steel narrow corrugated metal hose

Tube：316L stainless steel
Braid：304 stainless steel
Safety factor：3:1
Temperature range：-270 ° C ~ + 600 ° C (-454 ° F ~ + 1112 ° F)

Inquiry

LT401L

PTFE low-pressure multifunctional industrial hose

Inner layer：PTFE and EPDM synthetic rubber
Reinforcement：multi-spiraled high tensile synthetic fibers and helical spiral-wire
Outer layer：black or blue EPDM or FKM synthetic rubber (UPE layer is available)
Temperature range：-55°C~220°C (-67°F~428°F)
Reference standard：EN12115

Inquiry

LT401H

PTFE high-pressure multifunctional industrial hose

Inner layer：PTFE and EPDM synthetic rubber
Reinforcement layer：two steel wire braids or four-ply of spiraled steel wire
Outer layer：black /red/yellow/blue oxygen, UV,andabrasion resistant NV or EPDM synthetic rubber (UPE layer is available)
Temperature range： -55°C~220°C (-67°F~428°F)
Reference standard：EN12115
Customized scope：can customize 4 'and inner diameter of hose

Inquiry

LT1202H

UPE HIGH PRESSURE MULTIPURPOSE HOSE

Inner Tube: UPE and EPDM synthetic rubber
Reinforcement: two steel wire braids or four-ply of spiraled steel wire
Outer Layer: black /red/yellow/blue oxygen, UV ,andabrasion resistant NV or EPDM synthetic rubber(UPE layer is available)
Temperature Range: -30°C~82°C (-22°F~180°F)
Reference standard：EN12115

Inquiry
