LT1202H

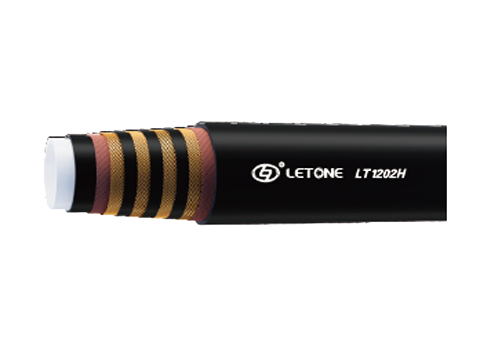

UPE HIGH PRESSURE MULTIPURPOSE HOSE
Application:Widely apply to industries like chemical, iron and steel smelting, construction, F&B, and medication etc. It is rarely reacting with any substance (oil, fats, corrosion chemicals etc.) because of its highly saturation materials. Its neutral taste and odor illustrates that it is safe to use in the F&B and medical industries.

Inner Tube: UPE and EPDM synthetic rubber:
Reinforcement: two steel wire braids or four-ply of spiraled steel wire:
Outer Layer: black /red/yellow/blue oxygen, UV ,andabrasion resistant NV or EPDM synthetic rubber(UPE layer is available):
Temperature Range: -30°C~82°C (-22°F~180°F):
Reference standard:EN12115
UPE HIGH PRESSURE MULTIPURPOSE HOSE
Parameter
I.D O.D W.P
Min.B.P
W.T
in mm in mm psi psi kg/m
3/8*2
10 0.75 19 5075 20300 0.58
1/2*2
13 0.89 22.2 4060
19140
0.61
5/8*2
16 1.07 27.2 3625
15950
0.73
3/4*2
19 1.20 30.5
3190
14500
0.95
1*2
25 1.52 38.4
2465
12325
1.42
1-1/4*2
32 1.79 45.5
1885
9425
1.72
1-1/2*2
38 2.03 51.5
1305
5220
1.9
2*4
51 2.99 76
5000
12500
6.3
3*4
76 4.09 104
5000
12500
10.5
3-1/2*4
89 4.76 121
5000
12500
14
4*4
102 5.28 134
5000
12500
16
