PTFE low-pressure multifunctional industrial hose -Letone

LT401L

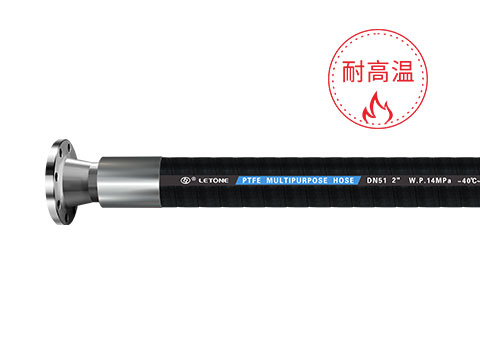

PTFE low-pressure multifunctional industrial hose

Application：Widely used in chemical, steel, construction, food, medicine and other fields. The product is suitable for high temperature working environment. Its super corrosion resistance makes it free from various corrosive liquid chemicals (sulfuric acid, Hydrochloric acid, sulfur reactants, etc.) erosion. The fully saturated nature of PTFE / PFA also makes it a good choice for tubes in the food and pharmaceutical industries

Inner layer：PTFE and EPDM synthetic rubber

Reinforcement：multi-spiraled high tensile synthetic fibers and helical spiral-wire

Outer layer：black or blue EPDM or FKM synthetic rubber (UPE layer is available)

Temperature range：-55°C~220°C (-67°F~428°F)

Reference standard：EN12115

Online

Hotline ：

+86037155157686

PTFE low-pressure multifunctional industrial hose

Parameter

I.D		O.D		W.P	B.P.	W.T
in	mm	in	mm	psi	psi	kg/m
3/8	10	0.7	19	5075	20300	0.58
1/2	13	0.9	22.2	4060	16240	0.61
5/8	16	1.07	27.2	3625	14500	0.73
3/4	19	1.2	30.5	3190	12760	0.95
1	25	1.5	38.4	2465	9860	1.42
1-1/4	32	1.8	45.5	1885	7540	1.72
1-1/2	38	2.0	51.5	1305	5220	1.9
2	51	2.80	71	300	750	2.05
3	76	3.86	98	300	750	3.50
4	102	5.00	127	300	750	5.50

LT409

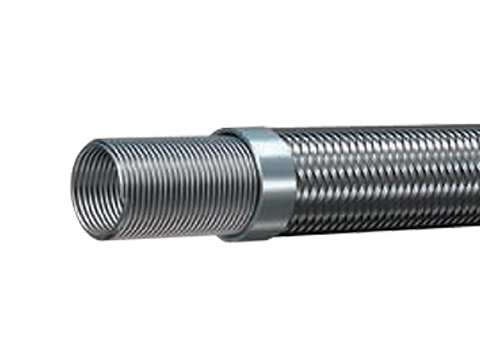

Stainless steel narrow corrugated metal hose

Tube：316L stainless steel
Braid：304 stainless steel
Safety factor：3:1
Temperature range：-270 ° C ~ + 600 ° C (-454 ° F ~ + 1112 ° F)

Inquiry

LT401L

PTFE low-pressure multifunctional industrial hose

Inner layer：PTFE and EPDM synthetic rubber
Reinforcement：multi-spiraled high tensile synthetic fibers and helical spiral-wire
Outer layer：black or blue EPDM or FKM synthetic rubber (UPE layer is available)
Temperature range：-55°C~220°C (-67°F~428°F)
Reference standard：EN12115

Inquiry

LT401H

PTFE high-pressure multifunctional industrial hose

Inner layer：PTFE and EPDM synthetic rubber
Reinforcement layer：two steel wire braids or four-ply of spiraled steel wire
Outer layer：black /red/yellow/blue oxygen, UV,andabrasion resistant NV or EPDM synthetic rubber (UPE layer is available)
Temperature range： -55°C~220°C (-67°F~428°F)
Reference standard：EN12115
Customized scope：can customize 4 'and inner diameter of hose

Inquiry

LT1202H

UPE HIGH PRESSURE MULTIPURPOSE HOSE

Inner Tube: UPE and EPDM synthetic rubber
Reinforcement: two steel wire braids or four-ply of spiraled steel wire
Outer Layer: black /red/yellow/blue oxygen, UV ,andabrasion resistant NV or EPDM synthetic rubber(UPE layer is available)
Temperature Range: -30°C~82°C (-22°F~180°F)
Reference standard：EN12115

Inquiry
