LT401H

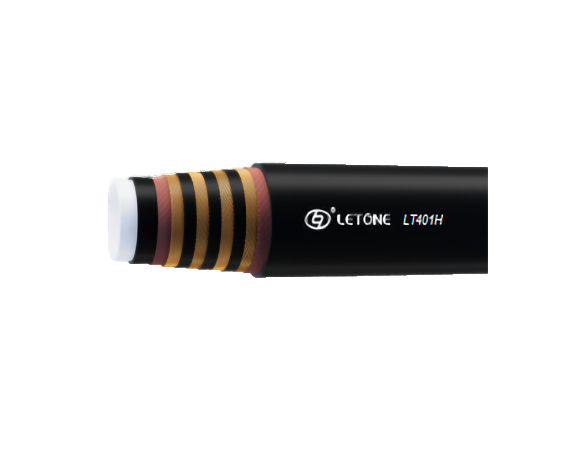

PTFE high-pressure multifunctional industrial hose

Application：Widely used in chemical, steel, construction, food, medicine and other fields. The product is suitable for high temperature working environment. Its super corrosion resistance makes it free from various corrosive liquid chemicals (sulfuric acid, Hydrochloric acid, sulfur reactants, etc.) erosion. The fully saturated nature of PTFE / PFA also makes it a good choice for tubes in the food and pharmaceutical industries

Inner layer：PTFE and EPDM synthetic rubber

Reinforcement layer：two steel wire braids or four-ply of spiraled steel wire

Outer layer：black /red/yellow/blue oxygen, UV,andabrasion resistant NV or EPDM synthetic rubber (UPE layer is available)

Temperature range： -55°C~220°C (-67°F~428°F)

Reference standard：EN12115

Customized scope：can customize 4 'and inner diameter of hose

Online

Hotline ：

+86037155157686

PTFE high-pressure multifunctional industrial hose

Parameter

I.D		O.D		W.P	Min.B.P	W.T
in	mm	in	mm	psi	mm	kg/m
3/8*2	10	0.83	21	6090	24070	0.82
1/2*2	13	0.95	24.2	6090	24070	0.94
5/8*2	16	1.15	29.2	6090	24070	1.25
3/4*2	19	1.24	31.5	5510	22040	1.60
1*2	25	1.56	39.5	5510	22040	1.93
1-1/4*2	32	1.84	46.8	4785	18850	3.02
1-1/2*2	38	2.21	57	4205	16820	3.57
2*4	51	3.15	80	5000	12500	7.8
3*4	76	4.25	108	5000	12500	12.0
4*4	102	5.47	139	5000	12500	17.8

LT409

Stainless steel narrow corrugated metal hose

Tube：316L stainless steel
Braid：304 stainless steel
Safety factor：3:1
Temperature range：-270 ° C ~ + 600 ° C (-454 ° F ~ + 1112 ° F)

Inquiry

LT401L

PTFE low-pressure multifunctional industrial hose

Inner layer：PTFE and EPDM synthetic rubber
Reinforcement：multi-spiraled high tensile synthetic fibers and helical spiral-wire
Outer layer：black or blue EPDM or FKM synthetic rubber (UPE layer is available)
Temperature range：-55°C~220°C (-67°F~428°F)
Reference standard：EN12115

Inquiry

LT401H

PTFE high-pressure multifunctional industrial hose

Inner layer：PTFE and EPDM synthetic rubber
Reinforcement layer：two steel wire braids or four-ply of spiraled steel wire
Outer layer：black /red/yellow/blue oxygen, UV,andabrasion resistant NV or EPDM synthetic rubber (UPE layer is available)
Temperature range： -55°C~220°C (-67°F~428°F)
Reference standard：EN12115
Customized scope：can customize 4 'and inner diameter of hose

Inquiry

LT1202H

UPE HIGH PRESSURE MULTIPURPOSE HOSE

Inner Tube: UPE and EPDM synthetic rubber
Reinforcement: two steel wire braids or four-ply of spiraled steel wire
Outer Layer: black /red/yellow/blue oxygen, UV ,andabrasion resistant NV or EPDM synthetic rubber(UPE layer is available)
Temperature Range: -30°C~82°C (-22°F~180°F)
Reference standard：EN12115

Inquiry
