BULK MATERIALS SUCTION & DISCHARGE HOSE -Letone

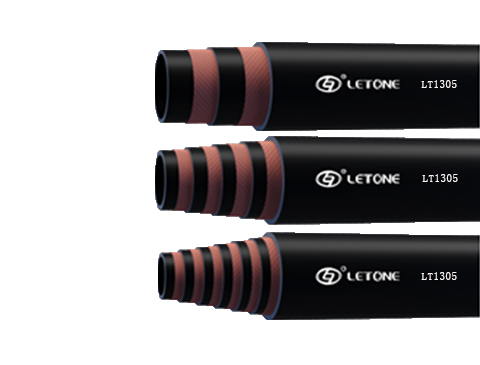

LT1305

BULK MATERIALS SUCTION & DISCHARGE HOSE

Application：It is widely used in mining construction, tunnel engineering and other large-scale engineering sites and construction machinery such as shield tunneling machines and slot milling machines. Its super wear-resistant characteristics make it not only suitable for coarse media such as mud, sand and stone, but also suitable for coal powder, dry powder, Dry substances such as cement and various corrosive chemicals. Its easy-to-install feature can improve on-site work efficiency

Inner Tube：black, abrasion resistant, antistatic NR&SBR synthetic rubber or UPE

Reinforcement：multi-spiraled high tensile synthetic fibers and helical spiral-wire

Outer Layer：NR&SBR or EPDM synthetic rubber

Temperature Range ：-30°C~+82°C(-22°F~+180°F)

Reference standard：HG/T 2192

Online

Hotline ：

+86037155157686

Parameter

I.D		O.D		W.P	Min.B.P	Min.B.R	W.T
in	mm	in	mm	psi	psi	mm	kg/m
2	51	2.48	63	300	750	400	1.55
3	76	3.62	92	300	750	570	2.60
4	102	4.76	120	300	750	750	4.50
5	127	5.98	152	300	750	1000	6.50
6	152	7.76	197	300	750	1260	19.5

LT1301

150PSI 2-Ply Abrasive Material Blast Hose

Inner Tube：Black NR conductive rubber-provides excellent abrasion resistance
Reinforcement：High tensile textile coreds-2-ply construction
Outer Layer：Black SBR/NR blend-abrasion and ozone resistant -pin pricked
Working Pressure：10Bar
Temperature Range：-30℃（-22°F）~+80℃（+176°F）

Inquiry

LT1311

Special wear-resistant hose for super wear-resistant steelmaking

Inner Tube：UPE
Reinforcement：High tension textile thread
Outer Layer：Black wear-resistant, weather-resistant synthetic rubber
Temperature Range：-40℃~80℃（-40°F~176°F）

Inquiry

LT788

UPE SUPER ABRASION RESISTANT BLAST HOSE

Inner Layer： Super abrasion resistance,flexibly, anti-adhesion UPE layer
Reinforcement：High tensile synthetic steel cord spiral
Outer Layer： Black SBR synthetic rubber, with high wear resistance and excellent anti-aging performance, wrapped cover
Temperature Range： -30℃ to +85℃
Features：Light weight, easy to operate, with excellent wear resistance performance, The abrasion performance of inside UPE liner is 3-5 times than abrasion resistant rubber, Which with good yield strength performance, more safety for users.
Standard：DIN53516

Inquiry

LT1310

75PSI Heavy Weight Dry Power Delivery Hose

Inner Tube：Black NR conductive electrostatic rubber-composite abrasive cutting
Reinforcement：High tensile textile cords
Outer Layer：Black SBR/NR conductive rubber-abrasion resistant, oxidation resistant
Working Pressure：5Bar(75PSI)
Temperature range：-30℃（-22°F）~ 80℃（+176°F）

Inquiry
