LT304

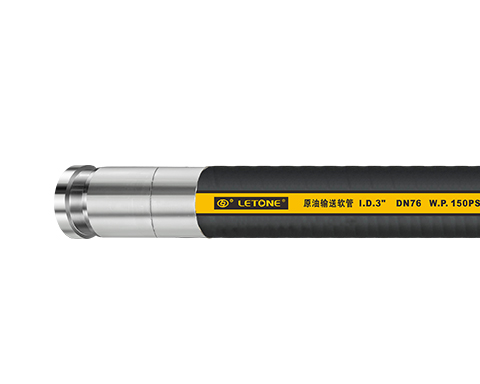

PTFE multifunctional crude oil conveying hose
Application: suitable to transferring petroleum products such as fuel oil, crude oil, gasoline, etc. The PTFE layer has excellent performance on corrosion resistance and lubrication.:

Inner layer:UPE/PTFE
Reinforcement: spiralled high tensile textile cord and highly flexibile steel helix wires/wires
Outer Layer: sythentic rubber:
Temperature Range: -30℃~+100℃(-22℉~+212℉); -40℃~+150℃(-40℉~+302℉) Customizable pressure level and inner diameter.:
PTFE multifunctional crude oil conveying hose
Parameter
Hose inner diameter Outer diameter of hose O.D. Maximum working pressure MaxRec.WP Min.B.R WeightWeigt
in. mm in. mm Psi mm kg/m
2 51 2.4 65 350 381 1.25
21/2 63 2.95 75 350 508 1.79
3 76 3.46 88 350 508 2.14
31/2 90 4.02 102 350 635 2.71
4 102 4.49 114 350 762 3.02
5 127 5.55 141 350 889 4.73
6 152 6.54 166 350 1270 5.97
