API 7K——High Pressure Cementing Hose -Letone

LT301

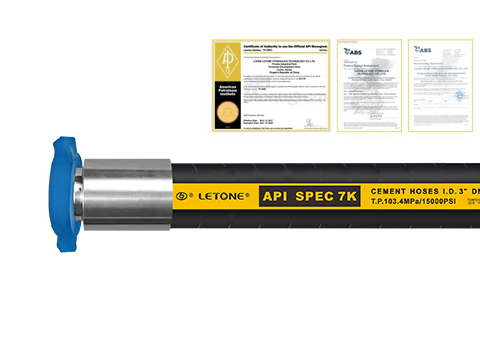

API 7K——High Pressure Cementing Hose

Application：flexible connection in the cementing manifold for delivery water-based and oil-based cement slurries at high pressure.

Tube Type：full flow

Reinforcement：many layers of high tensile super flexible spiral steel wire or steel cable

Outer Layer：abrasionand weather resistant synthetic rubber

Temperature range：-20℃~+121℃（-4℉~+250℉）

Standard：API Spec. 7K FSL0 | ABS

Connectors：integral union or integral flange

Online

Hotline ：

+86037155157686

Parameter

PRESSURE LEVEL	I.D.	O.D.	W.P.	P.P.	Min.B.P.	Min.B.R.	Weight
psi	in.	mm	psi	psi	psi	mm	kg/m
10000	2	83	10000	15000	22500	1000	10.8
	2 1/2	98	10000	15000	22500	1000	19.4
	3	129	10000	15000	22500	1400	28
	3 1/2	137	10000	15000	22500	1400	33
	4	154	10000	15000	22500	1600	38.5
15000	2	101	15000	22500	33750	1200	20.5
15000	3	125	15000	22500	33750	1500	36

LT303

API 16D——BOP Control Hose

Tube：NBR
Reinforcement：4 layers of high tensile super flexible spiral steel wire
Cover：high temperature and fire resistant synthetic rubber
Protective Layer：stainless steel armor
Temperature Range：-45°C~+100°C (-49°F~+212°F) Fire resistance meets API Spec. 16D, 704°CX5min
Standard：API Spec. 16D | Lloyds

Inquiry

LT301

API 7K——SUPER ABRASION RESISTANT ACID FRACTURING HOSE

Inner Tube：UPE and NR&SBR sythentic rubber
Tube Type： full flow
Reinforcement：many layers of high tensile super flexible spiral steel wire or steel cable
Outer Layer：abrasion and weather resistant synthetic rubber
Standard：API Spec. 7K FSL0 | ABS
Temperature Range：-20℃~+100℃（-4℉~+212℉）

Inquiry

LT301

API 7K——High Pressure Cementing Hose

Tube Type：full flow
Reinforcement：many layers of high tensile super flexible spiral steel wire or steel cable
Outer Layer：abrasionand weather resistant synthetic rubber
Temperature range：-20℃~+121℃（-4℉~+250℉）
Standard：API Spec. 7K FSL0 | ABS
Connectors：integral union or integral flange

Inquiry

LT302

API 16C——Flexible Choke And Kill Hose

Tube：HNBR
Reinforcement：many layers of high tensile super flexible spiral steel wire or steel cable
Cover：high temperature and fire resistant synthetic rubber (resistant to 704 °C open fire for 30 minutes)
Protective Layer：stainless steel armor
Temperature Range：-29℃~+121℃（-20℉~+250℉）
Standard：API Spec. 16C FSL0 FSL1 FSL2 FSL3 | ABS

Inquiry
