API 16D——BOP Control Hose -Letone

LT303

API 16D——BOP Control Hose

Application：hydraulic control line for remotely control the blowout preventer (BOP) at high pressure

Tube：NBR

Reinforcement：4 layers of high tensile super flexible spiral steel wire

Cover：high temperature and fire resistant synthetic rubber

Protective Layer：stainless steel armor

Temperature Range：-45°C~+100°C (-49°F~+212°F) Fire resistance meets API Spec. 16D, 704°CX5min

Standard：API Spec. 16D | Lloyds

Online

Hotline ：

+86037155157686

Parameter

I.D.	W.P.	P.P.	Min. B.P.	Min. B.R.	Weight
(in.)	(psi)	(psi)	(psi)	(mm)	(kg/m)
1/2	5000	7500	15000	300	0.9
3/4	5000	7500	15000	400	1.5
1	5000	7500	15000	500	2.1
1 1/2	5000	7500	15000	700	3.6
2	5000	7500	15000	800	5

LT303

API 16D——BOP Control Hose

Tube：NBR
Reinforcement：4 layers of high tensile super flexible spiral steel wire
Cover：high temperature and fire resistant synthetic rubber
Protective Layer：stainless steel armor
Temperature Range：-45°C~+100°C (-49°F~+212°F) Fire resistance meets API Spec. 16D, 704°CX5min
Standard：API Spec. 16D | Lloyds

Inquiry

LT301

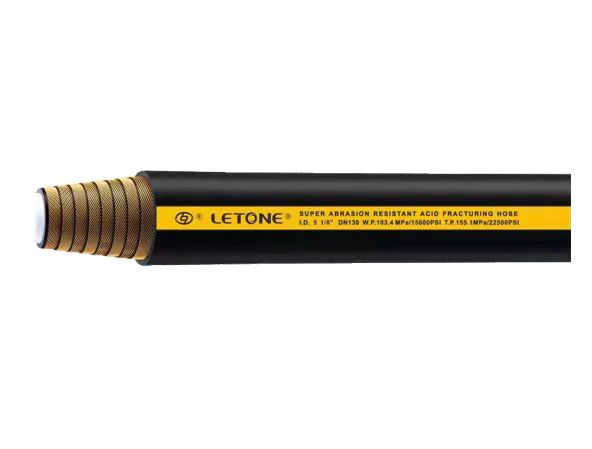

API 7K——SUPER ABRASION RESISTANT ACID FRACTURING HOSE

Inner Tube：UPE and NR&SBR sythentic rubber
Tube Type： full flow
Reinforcement：many layers of high tensile super flexible spiral steel wire or steel cable
Outer Layer：abrasion and weather resistant synthetic rubber
Standard：API Spec. 7K FSL0 | ABS
Temperature Range：-20℃~+100℃（-4℉~+212℉）

Inquiry

LT301

API 7K——High Pressure Cementing Hose

Tube Type：full flow
Reinforcement：many layers of high tensile super flexible spiral steel wire or steel cable
Outer Layer：abrasionand weather resistant synthetic rubber
Temperature range：-20℃~+121℃（-4℉~+250℉）
Standard：API Spec. 7K FSL0 | ABS
Connectors：integral union or integral flange

Inquiry

LT302

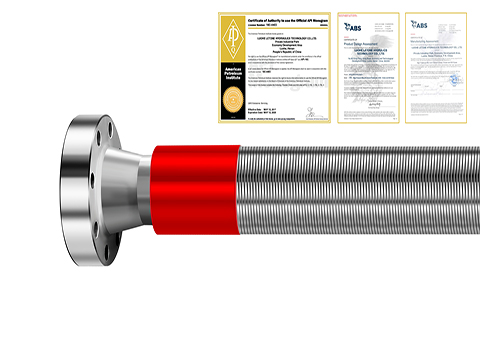

API 16C——Flexible Choke And Kill Hose

Tube：HNBR
Reinforcement：many layers of high tensile super flexible spiral steel wire or steel cable
Cover：high temperature and fire resistant synthetic rubber (resistant to 704 °C open fire for 30 minutes)
Protective Layer：stainless steel armor
Temperature Range：-29℃~+121℃（-20℉~+250℉）
Standard：API Spec. 16C FSL0 FSL1 FSL2 FSL3 | ABS

Inquiry
